    The new Acer ConceptD 5, 7 and 9 series – Content creator’s dream (specs, configurations, prices)

    From: Simeon Nikolov | 0

    Along with the new Acer Predator Helios 700, Helios 300, Nitro 5 and Nitro 7 gaming laptops the Taiwanese company announced something for the content creators as well. Actually, it is more than “something” – we have three new beautiful and powerful business series – ConceptD 5 (CN515-51), ConceptD 7 (CN715-71) and ConceptD 9 (CN917-71).

    Acer ConceptD 5

    Acer ConceptD 5 is the cheapest but it’s definitely not a low-end notebook. Just take a look at its specs – we have a 15.6 UHD 4K IPS display with 100% Adobe RGB coverage and Pantone Validated calibration. The CPU is Intel Core i7-8705G and the AMD Radeon RX Vega M GL takes care of the graphics tasks. It’s 16.9 mm thick and it weighs just 1.5 kg.

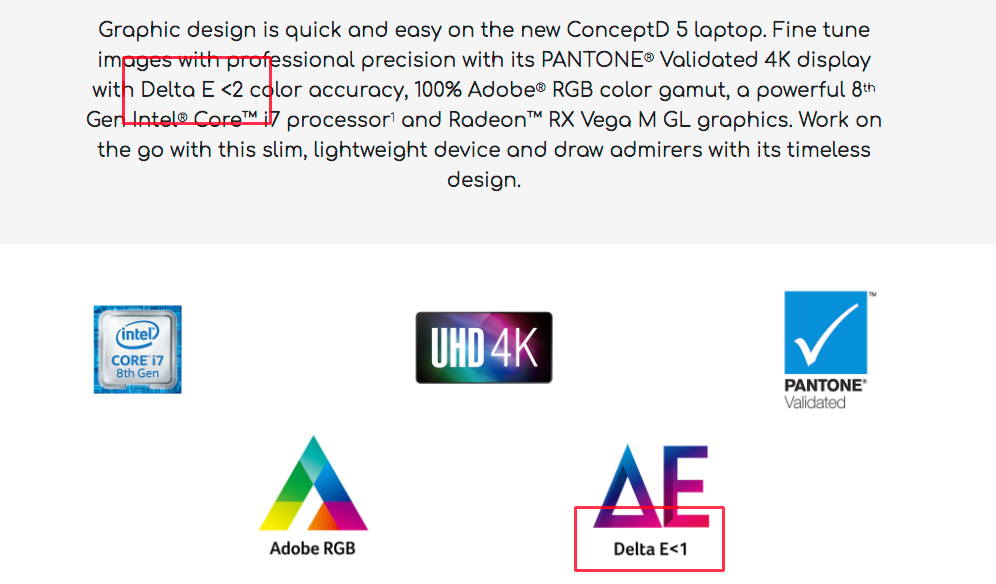

    It looks like Acer isn’t very sure about the color accuracy (Acer.com will be technically right if the dE is < 1) but we’ll tell you the exact numbers as soon as the laptop arrives in our laboratory.

    Acer ConceptD 5 (CN515-51) technical specifications table

    Acer
    Not available
    CPU
    Intel Core i7-8705G
    GPU
    AMD Radeon RX Vega M GL (Vega 870, 4GB HBM2)
    Display
    15.6”, 4K UHD (3840 x 2160), IPS
    HDD/SSD
    1TB SSD PCIe NVMe
    M.2 Slot
    2x 2280 M.2 NVMe slot See photo
    RAM
    16GB DDR4 (soldered)
    Dimensions
    356 x 248 x 16.9 mm (14.02" x 9.76" x 0.67")
    Weight
    1.50 kg (3.3 lbs)
    Body material
    Aluminum, Magnesium alloy
    Ports and connectivity
    • 1x USB Type-C 3.2 Gen 1 (5 Gbps), Power Delivery (PD), DisplayPort, HDMI
    • 1x USB Type-A 3.2 Gen 1 (5 Gbps), Sleep and Charge
    • 1x USB Type-A 3.2 Gen 1 (5 Gbps)
    • 1x USB Type-A 2.0
    • HDMI
    • Card reader SD, SDHC, SDXC
    • Wi-Fi 802.11ac
    • Bluetooth 4.1
    • Audio jack 3.5mm audio jack
    Features
    • Web camera
    • Backlit keyboard
    • Microphone
    • Speakers
    • Security Lock slotKensington Lock

    Acer ConceptD 7

    Acer ConceptD 7 is heavier (2.1 kg) and a bit thicker (17.9 mm) but that’s nothing given what we see in the specs sheet – 9th Gen Intel Core and GeForce RTX 2080 Max-Q! It has the same 100% Adobe RGB and Pantone Validated calibrated screen and beautiful white body.

    Acer ConceptD 7 (CN715-71) technical specifications table

    Acer
    Not available
    CPU
    Intel Core i7-9750H
    GPU
    NVIDIA GeForce RTX 2080 Max-Q
    Display
    15.6”, 4K UHD (3840 x 2160), IPS
    HDD/SSD
    1TB SSD PCIe NVMe
    M.2 Slot
    2x 2280 M.2 PCIe x4 NVMe slots with RAID 0 support
    RAM
    32GB DDR4, 2666 MHz
    Dimensions
    360 x 258 x 17.9 mm (14.17" x 10.16" x 0.70")
    Weight
    2.13 kg (4.7 lbs)
    Ports and connectivity
    • 1x USB Type-C 3.2 Gen 2 (10 Gbps), Thunderbolt 3, DisplayPort, HDMI
    • 1x USB Type-A 3.2 Gen 1 (5 Gbps), Sleep and Charge
    • 2x USB Type-A 3.2 Gen 1 (5 Gbps)
    • HDMI
    • VGA
    • DVI
    • Displayport mini
    • Ethernet lan Gigabit LAN (Killer E3000)
    • Wi-Fi 802.11ac (Killer AC 1550i)
    • Bluetooth 5.0
    • Audio jack 2x 3.5mm audio jacks
    Features
    • Web camera HD 720p
    • Backlit keyboard
    • Microphone
    • Speakers

    Acer ConceptD 9

    Acer ConceptD 9 (CN917-71) – a totally different machine here. That’s something like the Triton 900 (in-depth review) but with a simpler design made for content creators. It has a 17-inch 4K UHD IPS display with Wacom EMR pen support, up to Core i9-9880H CPU and GeForce RTX 2080 GPU (not Max-Q). This model will hit the USA in June for $4999. The European release is expected in August for 4999 EUR.

    Acer ConceptD 9 (CN917-71) technical specifications table

    Acer
    Not available
    CPU
    Intel Core i9-9880H
    GPU
    NVIDIA GeForce RTX 2080 (Laptop)
    Display
    17.3”, 4K UHD (3840 x 2160), IPS
    HDD/SSD
    1TB SSD PCIe NVMe
    M.2 Slot
    2x 2280 M.2 PCIe x4 NVMe slots with RAID 0 support
    RAM
    32GB DDR4, 2666 MHz
    Dimensions
    426 x 302 x 23.4 mm (16.77" x 11.89" x 0.92")
    Weight
    4.10 kg (9 lbs)
    Ports and connectivity
    • 2x USB Type-C 3.2 Gen 2 (10 Gbps), Thunderbolt 3, DisplayPort, HDMI
    • USB 3.2 Gen 1 (5 Gbps)
    • HDMI
    • Displayport full
    • Ethernet lan Gigabit LAN (Killer E3000)
    • Wi-Fi 802.11ac
    • Bluetooth 5.0
    • Audio jack 3.5mm audio jack
    Features
    • Web camera HD 720p
    • Backlit keyboard
    • Microphone
    • Speakers
    • Optical drive
    • Security Lock slotKensington Lock
