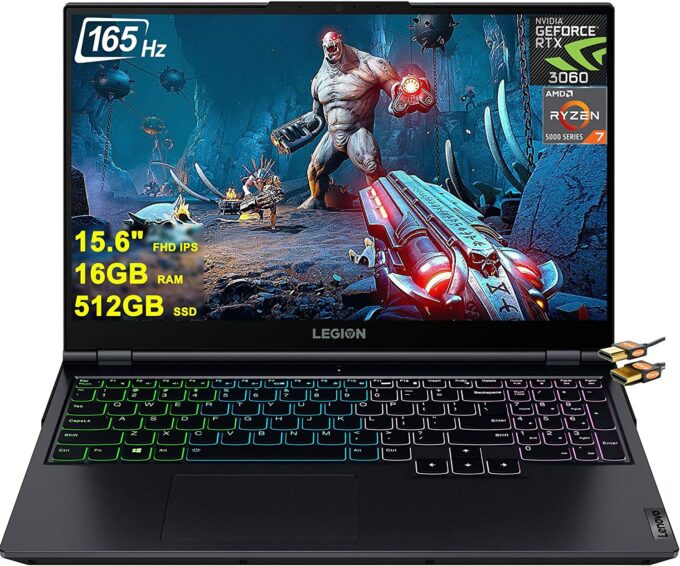

日本Lenovo Legion 5 15
- Date Published: 26 Jul 2022
- AMD Ryzen 7 5800H
- NVIDIA GeForce RTX 3060 (Laptop, 130W)
- 15.6", Full HD (1920 x 1080), 165 Hz, IPS + FreeSync
- 512GB SSD
- 16GB DDR4
- 2.40 kg (5.3 lbs)
Pros
- High TGP GPUs
- 2x M.2 PCIe slots, 2x RAM SODIMM slots in dual channel, Wi-Fi 6
- Covers 97% of the sRGB color gamut and has accurate color representation with our Gaming and Web design profile (BOE NV156FHM-NY8 (BOE0998))
- Snappy panel with quick response times (BOE NV156FHM-NY8 (BOE0998))
- Has a ton of ports
- Great input devices
- Keyboard remains relatively cool after long gaming sessions
- Competitive price
Cons
- No SD card
- High luminance nonuniformity (BOE NV156FHM-NY8 (BOE0998))
Specs
- AMD Ryzen 9 5900HS 3.0%
- Intel Core i7-1280P 3.6%
- AMD Ryzen 7 5800H
- Intel Core i7-11800H 0.3%
- Intel Core i9-11900H 0.5%
- Intel Core i7-11850H 1.1%
- NVIDIA GeForce RTX 3070 (Laptop, 95W) 7.4%
- NVIDIA GeForce RTX 2080 SUPER Max-Q (90W) 7.1%
- NVIDIA GeForce RTX 3060 (Laptop, 130W)
- NVIDIA GeForce RTX 3070 (Laptop, 85W) 11.5%
- HDD/SSD
- 512GB SSD
- M.2 Slot
- 2x M.2 NVMe slots See photo
- RAM
- 16GB DDR4
- OS
- Windows 11 Home
- Body Material
- Plastic / Polycarbonate
- Dimensions
- 362.56 x 260.61 x 22.5 ~ 25.75 mm (14.27" x 10.26" x 0.89")
- Weight
- 2.40 kg (5.3 lbs)
- Ports and connectivity
- 1x USB Type-A
- 3.2 Gen 1 (5 Gbps), Sleep and Charge
- 3x USB Type-A
- 3.2 Gen 1 (5 Gbps)
- 1x USB Type-C
- 3.2 Gen 2 (10 Gbps), DisplayPort
- 1x USB Type-C
- 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
- HDMI
- 2.1
- Card Reader
- Ethernet LAN
- 10, 100, 1000 Mbit/s
- Wi-Fi
- 802.11ax
- Bluetooth
- 5.1
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- Web camera
- HD
- Backlit keyboard
- Microphone
- Dual Array Microphone
- Speakers
- 2x 2W, Nahimic 3D Audio
- Optical drive
- Security Lock slot
- Gifts
- HDMI Cable
There are 4 laptops with the same specs, All brands (sorted by price)
More Lenovo Legion 5 15 configurations - 138 laptops
DISPLAY: 15.6-inch, 1920x1080, IPS + FreeSync
- Name
- BOE NV156FHM-NY8 (BOE0998)
- Diagonal
- 15.6"
- Pixel density
- 141.21 ppi
- Brightness
- 279 cd/m2
- sRGB
- 97%
- PWM frequency
- No PWM (Flicker-Free)
- Panel Type
- IPS
- Resolution
- 1920x1080
- Becomes "Retina" from
- 24 inches (62 cm)
- Contrast
- 1190:1
- dE Color Checker
- 1.7 0.7
- PWM Rating
- 10.0: (safe)
Buy our profiles for BOE NV156FHM-NY8 (BOE0998)
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount
Lenovo Legion 5 15 in-depth review
Last year, Lenovo was both conservative, and bold. Although it kept the same design, which proved successful in the past, the manufacturer took the risk to rely on AMD (in addition to Intel) for their processors. And today, the Legion 5 gets an update with the Zen 3 architecture and RTX 3000 graphics cards. Thankfully for the gamers, the laptop is equipped with a MUX switch. This allows you to connect the integrated display either to the integrated GPU for maximum efficiency and battery life or to the dedicated GPU, for the full bandwidth. Generally, the device remains pretty much unchanged on the outside, but we are glad to see that Lenovo still kept the Web camera - a feature abolished by ASUS and the majority of their ROG notebooks. Before we start there are a couple of points[...]
Read the full review
Disassembly, maintenance and upgrade options
It is about time to see Lenovo implement their ingenious vapor chamber cooling solution implemented on the Legion 5. Well, perhaps next year. Check out all Lenovo Legion 5 (15" AMD, 2021) prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate This laptop's bottom panel is held in place by 10 Phillips-head screws. After you undo them, you need to pry the panel with a plastic tool and remove it from the chassis. 2. Battery This model comes with either a 60 or an 80Wh battery pack. We got the former one. 3. Мemory and [...]
Read more
CPU Performance: AMD Ryzen 7 5800H
Results are from the Cinebench 20 CPU test (the higher the score, the better)
GPU Performance: NVIDIA GeForce RTX 3060 (Laptop, 130W)
Results are for the 3DMark: Fire Strike (Graphics) benchmark (the higher the score, the better)
Some games you can play on this laptop
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
MAX
|
|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 299 FPS PLAY VIDEO | 260 FPS PLAY VIDEO | 184 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
EPIC
|
|---|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 177 FPS PLAY VIDEO | 110 FPS PLAY VIDEO | 89 FPS PLAY VIDEO | 55 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
NORMAL
|
HIGH
|
VERY HIGH
|
MAX
|
|---|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 185 FPS PLAY VIDEO | 161 FPS PLAY VIDEO | 98 FPS PLAY VIDEO | 67 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 143 FPS PLAY VIDEO | 92 FPS PLAY VIDEO | 54 FPS PLAY VIDEO | 24 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 127 FPS PLAY VIDEO | 104 FPS PLAY VIDEO | 84 FPS PLAY VIDEO | 71 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
ULTRA
|
|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 677 FPS PLAY VIDEO | 362 FPS PLAY VIDEO | 197 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MAX
|
|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 2053 FPS PLAY VIDEO | 119 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
MAX
|
|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 493 FPS PLAY VIDEO | 454 FPS PLAY VIDEO | 372 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
VERY LOW
|
NORMAL
|
ULTRA
|
|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 165 FPS PLAY VIDEO | 149 FPS PLAY VIDEO | 112 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
VERY LOW
|
MED
|
MAX
|
|---|---|---|---|
| NVIDIA GeForce RTX 3060 (Laptop, 130W) | 608 FPS PLAY VIDEO | 427 FPS PLAY VIDEO | 435 FPS PLAY VIDEO |
