•  Date Published: 28 Sep 2021
  • Intel Core i5-1145G7
  • Intel Iris Xe Graphics G7 (80EU)
  • 15.6”, Full HD (1920 x 1080), IPS
  • 256GB SSD
  • 16GB LPDDR4x, 4266 MHz
  • 1.53 kg (3.4 lbs)

Pros

  • Thin and light design
  • Good battery life
  • A bunch of privacy and security features
  • Dual Thunderbolt 4 support
  • Optional LTE card
  • No PWM (559D1-156WFD (LGD0684))
  • Choice between aluminum and carbon for the body
  • Abundance of ports

Cons

  • Quite expensive
  • Soldered memory
  • 53% of sRGB coverage (559D1-156WFD (LGD0684))

Specs

CPU Performance #105in Top CPUs
  • Intel Core i7-1165G7 1.3%
  • AMD Ryzen 3 5300U 1.5%
  • Intel Core i5-1145G7
  • Intel Core i5-10400H 0.3%
  • Intel Core i5-9300H 0.7%
  • Intel Core i7-8705G 2.8%
GPU Performance #96in Top GPUs
  • NVIDIA GeForce MX350 (25W) 0.8%
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (80EU)
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • NVIDIA GeForce MX330 (2GB GDDR5, 25W) 2.7%
  • 559D1-156WFD (LGD0684)
  • Color accuracy  4.9  3.8
  • HDD/SSD
  • 256GB SSD
  • RAM
  • 16GB LPDDR4x, 4266 MHz
  • OS
  • Windows 10 Pro
  • Body Material
  • Aluminum, Carbon
  • Dimensions
  • 357.7 x 229 x 17.5 mm (14.08" x 9.02" x 0.69")
  • Weight
  • 1.53 kg (3.4 lbs)
  • Ports and connectivity
  • 2x USB Type-A
  • 3.2 Gen 1 (5 Gbps)
  • 2x USB Type-C
  • Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • uSD 4.0
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.1
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Web camera
  • Full HD & HD IR
  • Microphone
  • Noise reducing array microphones
  • Speakers
  • 2x 2W, Stereo Speakers
  • Optical drive
  • Security Lock slot

DISPLAY: 15.6-inch, 1920x1080, IPS

  • Name
  • 559D1-156WFD (LGD0684)
  • Diagonal
  • 15.6"
  • Pixel density
  • 141.21 ppi
  • Brightness
  • 297 cd/m2
  • sRGB
  • 53%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 24 inches (62 cm)
  • Contrast
  • 960:1
  • dE Color Checker
  • 4.9 3.8
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for 559D1-156WFD (LGD0684)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

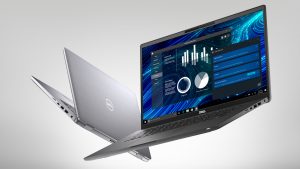

Dell Latitude 7520 in-depth review

On paper, the Latitude 15 7520 seems like a very promising machine. Optional UHD display with HDR capabilities. LTE connectivity and Tiger Lake processors are other features. Ultimately, this device doesn't look like a typical business device. In addition to being productive, it looks absolutely stunning. Interestingly, Dell offers the machine with either an aluminum or a Carbon Fiber chassis. From the pictures that lie ahead, you can see that we were able to lay our hands on a Carbon device. So, by addressing the looks factor, Dell is trying to salvage some users from Lenovo, as the Chinese brand pushed hard for its new ThinkBook brand a couple of years back. You can check the prices and configurations in our Specs System: https://laptopmedia.com/series/dell-latitude-15-7520/ [...]

Read the full review

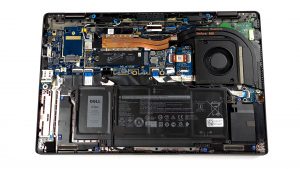

Disassembly, maintenance and upgrade options

Dell often makes good decisions with its business notebooks. However, the lack of memory slots on this machine is kind of disappointing. Check out all Dell Latitude 15 7520 prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To get inside the laptop, you have to undo a total of 8 captive Phillips-head screws. Then, pry the bottom panel, starting from the hinge gaps. 2. Battery Once you pop the panel open, you will see the 63Wh battery pack. 3. Мemory and storage Unfortunately, the memory here is soldered to the [...]

Read more
