•  Date Published: 13 Jul 2022
  • Intel Core i5-1240P
  • Intel Iris Xe Graphics G7 (80EU)
  • 14.0″, 2.8K (2880 x 1800), 90 Hz, OLED
  • 512GB SSD
  • 8GB LPDDR4x
  • 1.39 kg (3.1 lbs)


  • Great performance from a ULV chip
  • Fantastic input devices
  • Strong aluminum chassis
  • 100% sRGB and DCI-P3 coverage + HDR support
  • High resolution and 16:10 aspect ratio
  • True blacks and virtually infinite contrast ratio
  • NumberPad
  • 90Hz refresh rate with fast pixel response times
  • Fingerprint reader + MicroSD card slot + 2x Thunderbolt 4


  • Uses PWM below 95 nits (but offers a flicker-free function)
  • Soldered memory


CPU Performance #50in Top CPUs
  • AMD Ryzen 7 5850U 1.7%
  • AMD Ryzen 5 5600H 2.4%
  • Intel Core i5-1240P
  • AMD Ryzen 7 5700U 0.8%
  • Intel Core i9-9880H 1.1%
  • Intel Core i7-1265U 0.8%
GPU Performance #96in Top GPUs
  • NVIDIA GeForce MX350 (25W) 0.8%
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (80EU)
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • NVIDIA GeForce MX330 (2GB GDDR5, 25W) 2.7%
  • Samsung ATNA40YK07-0 (SDC4171)
  • Color accuracy  2.4  2.2
  • 512GB SSD
  • M.2 Slot
  • 1x 2280 M.2 PCIe 4.0 x4   See photo
  • RAM
  • 8GB LPDDR4x
  • OS
  • Windows 11 Pro
  • Body Material
  • Aluminum
  • Dimensions
  • 313.6 x 220.6 x 16.9 mm (12.35" x 8.69" x 0.67")
  • Weight
  • 1.39 kg (3.1 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 3.2 Gen 2 (10 Gbps)
  • 2x USB Type-C
  • 3.2 Gen 2 (10 Gbps), Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • MicroSD
  • Ethernet LAN
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD/FHD
  • Backlit keyboard
  • Microphone
  • Microphone with Cortana and Alexa voice-recognition
  • Speakers
  • Speakers by Harman Kardon
  • Optical drive
  • Security Lock slot
  • Gifts
  • 32GB MicroSD Card

DISPLAY: 14.0-inch, 2880x1800, OLED

  • Name
  • Samsung ATNA40YK07-0 (SDC4171)
  • Diagonal
  • 14.0"
  • Pixel density
  • 242.59 ppi
  • Brightness
  • 428 cd/m2
  • sRGB
  • 100%
  • PWM frequency
  • 357 Hz
  • Panel Type
  • OLED
  • Resolution
  • 2880x1800
  • Becomes "Retina" from
  • 14 inches (36 cm)
  • Contrast
  • infinite
  • dE Color Checker
  • 2.4 2.2
  • PWM Rating
  • 4.9: (undesirable)

Buy our profiles for Samsung ATNA40YK07-0 (SDC4171)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.


Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

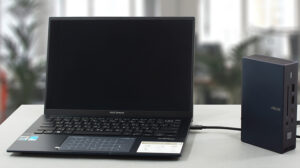

ASUS Zenbook 14 in-depth review

The Zenbook family has always been synonymous with elegance. If you are in the market for a Zenbook laptop, you are either a business person, or you really like to look after your image. Regardless of that, the Zenbook 14 OLED (UX3402) is a laptop, which will try to elevate your game, even before you turn it on. One thing is undoubtedly true, and it is that the display is one of the key selling points here. But this is not only because it has found its way to the name of the laptop. Instead, the reason for that lies both in the hardware and the software, provided by ASUS. Speaking of hardware, it is a good time to mention the chips, which are going to power your device. You get to choose between two 28W Alder Lake CPUs - the Core i5-1240P, and the Core i7-1260P. Both of them offer a[...]

Read the full review

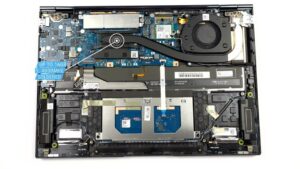

Disassembly, maintenance and upgrade options

As with most of the ultrabooks out there, upgradeability is not a strong point. On the bright side, the laptop has other perks, which you can see in our review. Check out all ASUS Zenbook 14 OLED (UX3402) prices and configurations in our Specs System, or read more in our In-Depth review. 1. Remove the bottom plate To open this device, you first need to remove the back rubber feet. Then, undo the two Phillips-head screws that are revealed, as well as the 7 Torx-head screws, already visible. After that, pry the bottom panel with a plastic tool, starting from the front. 2. Batte[...]

Read more

CPU Performance: Intel Core i5-1240P

GPU Performance: Intel Iris Xe Graphics G7 (80EU)
