ASUS VivoBook S14 (S435)
- Date Published: 14 Jan 2021
- Report a mistake
- Intel Core i7-1165G7
- Intel Iris Xe Graphics G7 (96EU)
- 14.0”, Full HD (1920 x 1080), IPS
- 1000GB SSD
- 16GB LPDDR4x, 4266 MHz
- 1.30 kg (2.9 lbs)
Pros
- 2x Thunderbolt 4, MicroSD card slot
- Up to 64 GB of RAM in dual-channel
- Fingerprint reader
- Wi-Fi 6, PCIe x4
- 98% sRGB coverage and Average dE of 1.1 with our Gaming and Web design profile (AUO B140HAN06.B (AUOA48F))
- No PWM (AUO B140HAN06.B (AUOA48F))
- Comfortable keyboard with a backlight
- Good battery life
- All-aluminum build
Cons
- Soldered memory
- Small arrow keys
Specs
- Intel Core i7-1185G7 1.1%
- Intel Core i7-10710U 1%
- Intel Core i7-1165G7
- Intel Core i5-1135G7 0.8%
- Intel Core i5-10300H 1%
- Intel Core i5-1145G7 1.3%
- NVIDIA GeForce MX450 (GDDR6, 25W / 28.5W) 0.1%
- NVIDIA T600 5.1%
- Intel Iris Xe Graphics G7 (96EU)
- NVIDIA GeForce MX350 (25W) 3.1%
- NVIDIA GeForce MX250 (25W) 4.6%
- Intel Iris Xe Graphics G7 (80EU) 2.3%
- HDD/SSD
- 1TB SSD
- M.2 Slot
- 1x M.2 NVMe slot See photo
- RAM
- 16GB LPDDR4x, 4266 MHz
- OS
- Windows 10 Home
- Body Material
- Aluminum
- Dimensions
- 322.2.x 204 x 15.9 mm (12.69" x 8.03" x 0.63")
- Weight
- 1.30 kg (2.9 lbs)
- Ports and connectivity
- 1x USB Type-A
- 2.0
- 1x USB Type-A
- 3.2 Gen 1 (5 Gbps)
- 2x USB Type-C
- Thunderbolt 4
- HDMI
- Card Reader
- MicroSD
- Wi-Fi
- 802.11ax
- Bluetooth
- 5.0
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- Web camera
- HD
- Backlit keyboard
- Microphone
- Array microphone with Cortana voice-recognition support
- Speakers
- Optical drive
More ASUS VivoBook S14 (S435) configurations - 6 laptops
DISPLAY: 14.0-inch, 1920x1080, IPS
- Name
- AUO B140HAN06.B (AUOA48F)
- Diagonal
- 14.0"
- Pixel density
- 157.35 ppi
- Brightness
- 330 cd/m2
- sRGB
- 97%
- PWM frequency
- No PWM (Flicker-Free)
- Panel Type
- IPS
- Resolution
- 1920x1080
- Becomes "Retina" from
- 22 inches (56 cm)
- Contrast
- 1530:1
- dE Color Checker
- 2.0 0.8
- PWM Rating
- 10.0: (safe)
Buy our profiles for AUO B140HAN06.B (AUOA48F)
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount
ASUS VivoBook S14 (S435) in-depth review
If you are planning to buy a notebook, there are a couple of questions you need to answer before you make a decision. First, what do you need your laptop for? Are you going to play games on it, use it as a workhorse, or just for multimedia consumption? Then, you need to figure out your budget.So, if you are in school, work from home, or just want to express yourself, one of the best options is the VivoBook series. And if you are planning to invest a bit more - the ZenBook, also from ASUS. However, if your budget is tight, but you still want something of good quality, then the ASUS VivoBoo[...]

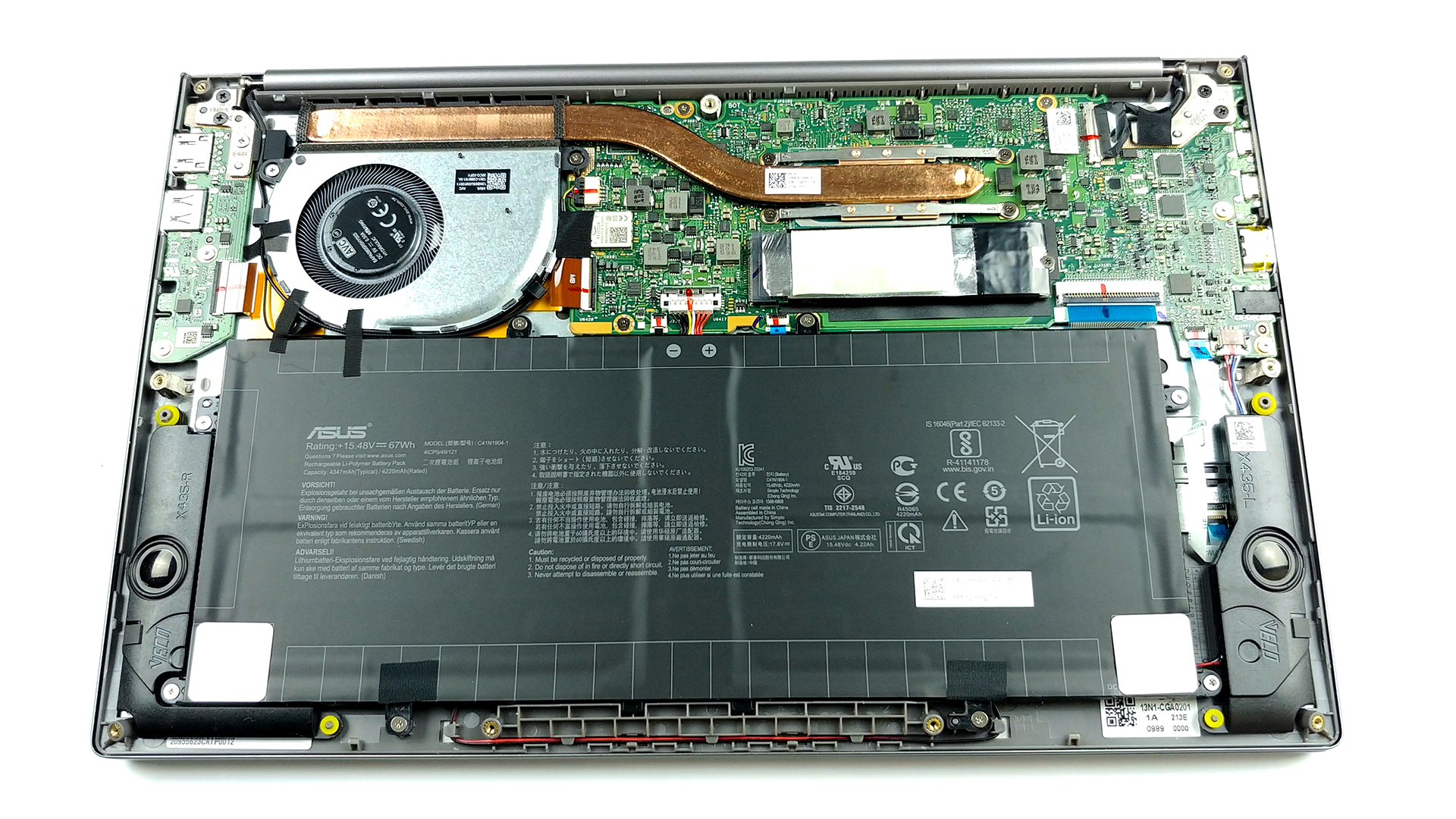

Disassembly, maintenance and upgrade options
This device is probably one of the most premium offerings from the VivoBook brand. Not only it offers a tremendous amount of performance, but its chassis provides a feeling of stability and class.Check out all ASUS VivoBook S14 S435 prices and configurations in our Specs System or read more in our In-Depth review.1. Remove the bottom plate This laptop's bottom panel is held in place by 9 Torx-head screws. After you undo them, you need to pry the panel with a plastic tool. Then, lift it away from the chassis.2. Battery It's good to see that ASUS has integrated a 67Wh batte[...]
CPU Performance: Intel Core i7-1165G7
Results are from the Cinebench 20 CPU test (the higher the score, the better)
Results are from our Photoshop benchmark test (the lower the score, the better)
GPU Performance: Intel Iris Xe Graphics G7 (96EU)
Results are for the 3DMark: Fire Strike (Graphics) benchmark (the higher the score, the better)
Results are from the 3DMark: Time Spy (Graphics) benchmark (higher the score, the better)
Results are for the Unigine Heaven 4.0 benchmark (the higher the score, the better)
Results are for the Unigine Superposition benchmark (the higher the score, the better)
Some games you can play on this laptop
Resolution: 1920 x 1080 (Full HD) |
MIN |
MED |
MAX |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 42 FPS PLAY VIDEO | 33 FPS PLAY VIDEO | 23 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
NORMAL |
HIGH |
VERY HIGH |
MAX |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 48 FPS PLAY VIDEO | 19 FPS PLAY VIDEO | - PLAY VIDEO | - PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
MIN |
MAX |
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 537 FPS PLAY VIDEO | 50 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
MIN |
MED |
ULTRA |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 174 FPS PLAY VIDEO | 41 FPS PLAY VIDEO | 23 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
MAX |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 117 FPS PLAY VIDEO | 79 FPS PLAY VIDEO | 39 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
VERY LOW |
MED |
MAX |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 231 FPS PLAY VIDEO | 183 FPS PLAY VIDEO | 142 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
HIGH |
ULTRA |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 33 FPS PLAY VIDEO | 25 FPS PLAY VIDEO | 22 FPS PLAY VIDEO | - PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
VERY LOW |
MED |
HIGH |
ULTRA |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 30 FPS PLAY VIDEO | 23 FPS PLAY VIDEO | - PLAY VIDEO | - PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
NORMAL |
HIGH |
MAX |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 94 FPS PLAY VIDEO | 63 FPS PLAY VIDEO | 45 FPS PLAY VIDEO | 34 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
HIGH |
ULTRA |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 36 FPS PLAY VIDEO | 25 FPS PLAY VIDEO | 19 FPS PLAY VIDEO | - PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
HIGH |
ULTRA |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 37 FPS PLAY VIDEO | 28 FPS PLAY VIDEO | 23 FPS PLAY VIDEO | - PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
ULTRA |
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 103 FPS PLAY VIDEO | 44 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
HIGH |
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 71 FPS PLAY VIDEO | 40 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
PERF. |
ORIG. |
ENCH. |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 53 FPS PLAY VIDEO | 47 FPS PLAY VIDEO | 41 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
HIGH PERF |
HIGH QLT |
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 97 FPS PLAY VIDEO | 43 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
MED |
HIGH |
VERY HIGH |
ULTRA |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 54 FPS PLAY VIDEO | 38 FPS PLAY VIDEO | 37 FPS PLAY VIDEO | 32 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
VERY HIGH |
MAX |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 36 FPS PLAY VIDEO | 25 FPS PLAY VIDEO | - PLAY VIDEO | - PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOWEST |
HIGH |
EPIC |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 46 FPS PLAY VIDEO | 34 FPS PLAY VIDEO | 22 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MAX |
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 119 FPS PLAY VIDEO | 49 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
HIGH |
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 53 FPS PLAY VIDEO | 37 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
ULTRA |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 32 FPS PLAY VIDEO | 28 FPS PLAY VIDEO | 26 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
HIGH |
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 182 FPS PLAY VIDEO | 170 FPS PLAY VIDEO | 60 FPS PLAY VIDEO |
Resolution: 1920 x 1080 (Full HD) |
LOW |
MED |
HIGH |
ULTRA |
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 41 FPS PLAY VIDEO | 27 FPS PLAY VIDEO | 23 FPS PLAY VIDEO | - PLAY VIDEO |
