Inside Dell Vostro 15 5515 – disassembly and upgrade options

Notoriously, this laptop is as future-proof as it can get.

Check out all Dell Vostro 15 5515 prices and configurations in our Specs System or read more in our In-Depth review.


1. Remove the bottom plate

To take this device apart, you first need to undo all 9 Phillips-head screws. Then, just pop the bottom panel open with a plastic tool.


2. Battery

When it comes to the battery, we see a 54Wh unit.

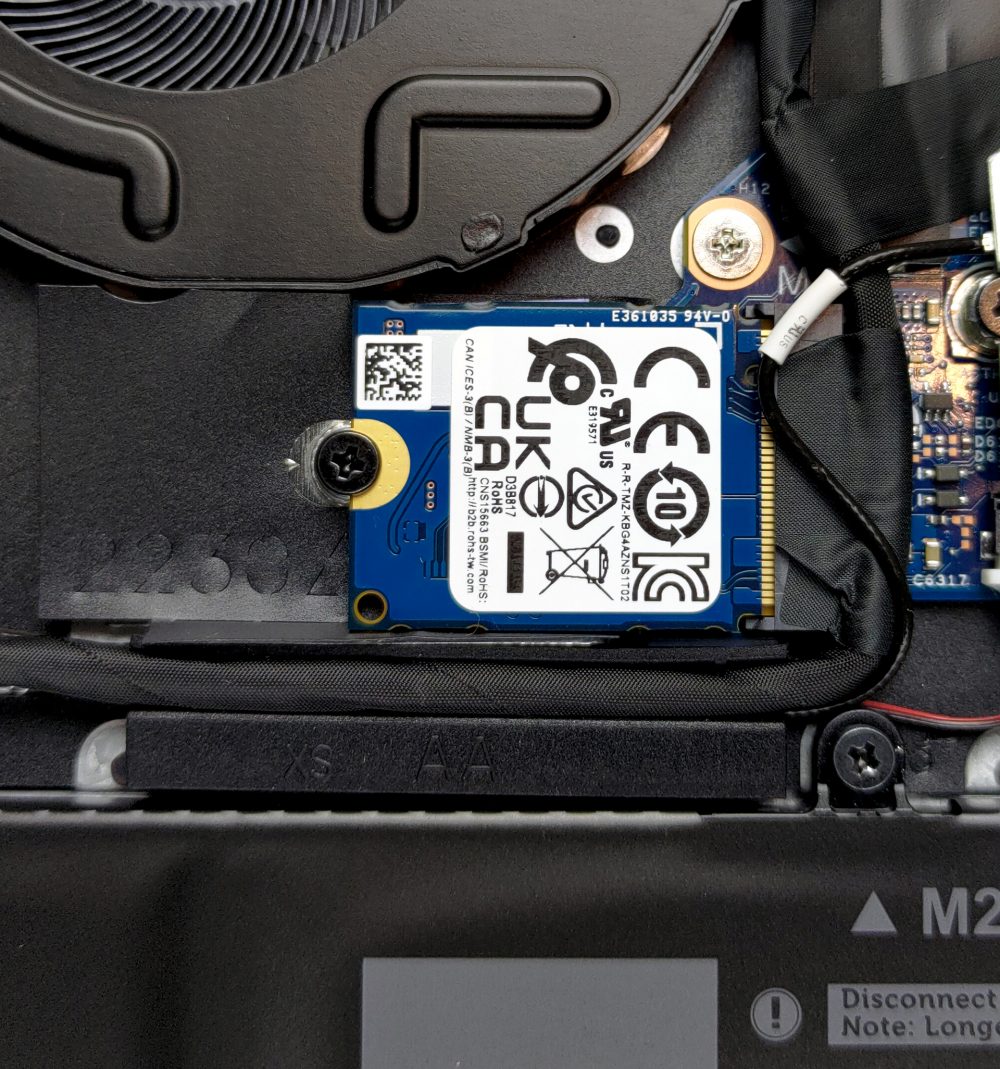

3. Мemory and storage

Thankfully, the notebook is well-populated in terms of upgrade options. There are two SODIMM slots for memory expansion. They fit up to 64GB in total and work in dual-channel mode. As for the storage, there are two M.2 slots. One of them fits 30mm drives only, while the other can also hold 80mm ones.


4. Cooling system

Cooling-wise, there are two heat pipes and a fan of medium size.

Check out all Dell Vostro 15 5515 prices and configurations in our Specs System or read more in our In-Depth review.

Dell Vostro 15 5515 in-depth review

The Vostro 15 5515 has one simple goal - to help you take care of your business. And even though Dell was really fond of sticking with Intel a couple of years back, AMD's push into the laptop world has reaped its rewards. Now, one of the biggest notebook manufacturers looks to be proud of their work with the Red company. They even go as far as promising performance you can rely on.Indeed reliability, stability, and security are key ingredients in the success of every business-related device. This is why the Vostro 15 5515 features a TPM 2.0 chip, a privacy shutter, and an optional fingerp[...]

Pros

  • Generous I/O
  • Supports 2 M.2 PCIe x4 drives and up to 64GB of dual-channel memory
  • It is equipped with an SD card reader
  • No aggressive PWM (CNC9J-156HCA)
  • Good battery life
  • Privacy shutter, fingerprint reader, and TPM 2.0 chip
  • Potentially powerful and efficient hardware

Cons

  • Flexy deck
  • Covers only 54% of the sRGB gamut (CNC9J-156HCA)
