Inside Dell Latitude 14 9410 2-in-1 – disassembly and upgrade options
Most convertibles on the market struggle with their upgrade options. This notebook is not an exception.
Dell Latitude 9410
- Intel Core i5-10310U
- Intel UHD Graphics
- 16GB RAM
- 256GB SSD
1. Remove the bottom plate
There are 10 captive Phillips-head screws that hold the bottom panel to the chassis. Undo them, and then pry the panel with a plastic tool, and you’re inside.
Preferably, the first thing you need to do, once you’re inside, is to disconnect the battery plug. By the way, this notebook comes with a 52Wh pack.
3. Memory and storage

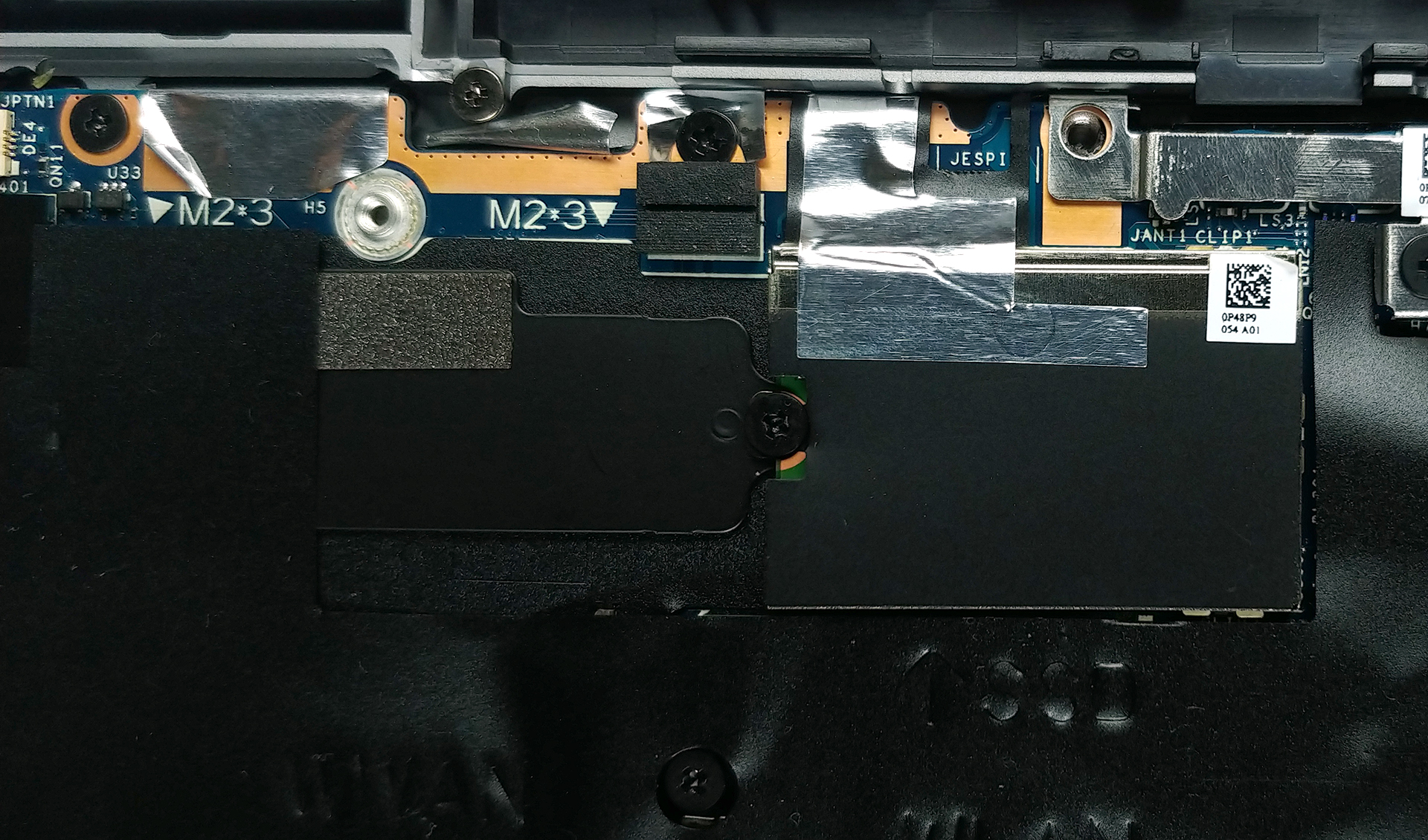

After you have removed the battery connector, you can check the single M.2 PCIe x4 drive slot. Sadly, you can only change what you have there, and not add more. Additionally, the memory is soldered to the motherboard, and it also can’t be upgraded. Here, Dell provides two options – 8GB or 16GB of LPDDR3 memory, working at merely 2133 MHz.
4. Cooling system
For cooling, Dell has opted for a rather thin heat pipe, and some metal brackets, covering the mounting mechanism, the soldered memory, and the VRMs. And to blow away the heat from the chassis, it uses a tiny fan.
