ASUS ROG GL504GM SCAR II vs GL504GS SCAR II vs GL504GM Hero II – what are the differences?

The Taiwanese tech giant ASUS has recently added new models to its ROG Strix family that stand out with their stylish looks and high performance for all the gaming maniacs out there. In this article, we are going to make an attempt to reveal the major differences between GL504GM SCAR II, GL504GS SCAR II, and GL504GM Hero II.

You can check all available configurations and detailed specs in our Laptops Specs system: http://laptopmedia.com/series/asus-rog-gl504/

As usual, let’s take a look at the hardware side of things first. All three models are powered by the latest 8th gen Intel processors – the options include the six-core Core i7-8750H and the quad-core Core i5-8300H backed up by up to 32 GB of DDR4-2666 dual-channel memory. Furthermore, they boast a hybrid storage system of up to 512 GB M.2 NVMe PCIe SSD and 1TB HDD or 1TB FireCuda SSHD. The difference comes in terms of the available GPU as both GL504GM SCAR II and GL504GM Hero II are equipped with NVIDIA GeForce GTX 1060 with 6GB GDDR5 VRAM, whereas the GL504GS comes with NVIDIA GeForce GTX 1070 with 8GB GDDR5 VRAM.

ROG Strix SCAR II (GL504GM / GL504GS)

ROG Strix Hero II (GL504GM)

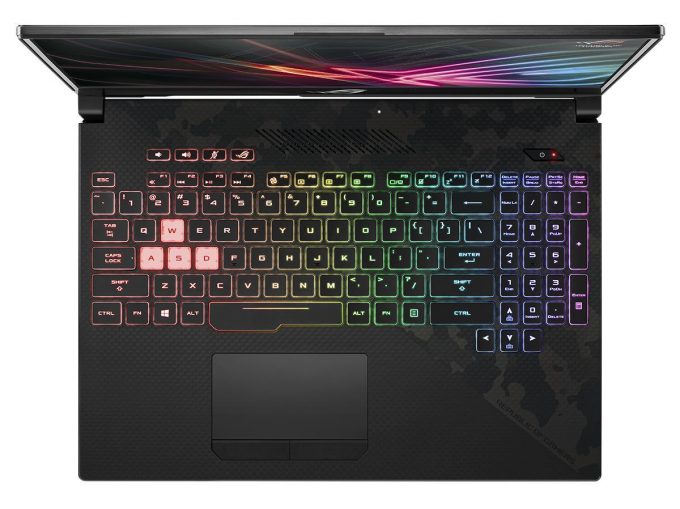

In terms of design, we notice that the RGB-lit keyboards of both GL504GM SCAR II and GL504GS SCAR II feature accent color on the WASD keys as opposed to highlighted QWER buttons in Hero II‘s one.

Moving on, as you can see from the table below, all three models offer a 15.6-inch IPS-level panel with FHD (1920 x 1080) and 144Hz refresh rate. However, ROG Strix Hero II (GL504GM) also comes with an IPS-level FHD (1920 x 1080) panel with a 60Hz refresh rate. All of the options feature super-narrow-bezel displays with 100% sRGB color gamut coverage, 3 ms response time and non-glare coating.

SeriesGL504GM SCAR IIGL504GS SCAR IIGL504GM Hero II
Processor8th Gen Intel Core i7-8750H
8th Gen Intel Core i5-8300H
GraphicsNVIDIA GeForce GTX 1060 (6GB GDDR5)NVIDIA GeForce GTX 1070 (8GB GDDR5)NVIDIA GeForce GTX 1060 (6GB GDDR5)
OSWindows 10 Home
Windows 10 Pro
MemoryUp to 32GB DDR4 2666MHz SDRAM (dual-channel)
SSDM.2 NVMe PCIe 128GB / 256GB / 512GB SSD
HDD2.5” 5400rpm 1TB SSHD
2.5” 5400rpm / 7200rpm 1TB HDD
Display15.6″ IPS-level FHD (1920 x 1080) panel, 144Hz refresh rate, 3ms GTG response time, 100% sRGB color gamut, and non-glare coating– 15.6″ IPS-level FHD (1920 x 1080) panel, 144Hz refresh rate, 3ms GTG response time, 100% sRGB color gamut, and non-glare coating
– 15.6″ IPS-level FHD (1920 x 1080) panel, 60Hz refresh rate, 100% sRGB color gamut, and non-glare coating

Let’s turn our heads to the connectivity options these gaming beasts provide. All three of them cover today’s standards: 1 x USB 3.1 Gen 2 Type-C port, 2 x USB 3.1 Gen 1 ports, 1 x USB 3.1 Gen 2 port, mini DisplayPort 1.2, HDMI 2.0, RJ-45 jack, SD card reader, 3.5 mm audio jack, as well as a Kensington lock slot.

We also didn’t find any differences in the dimensions where the notebooks measure at 26.1 mm in height and tip the scale at 2.40 kg (5.3 lbs).

SeriesGL504GM SCAR IIGL504GS SCAR IIGL504GM Hero II
I/O Ports1 x USB 3.1 Gen 2 Type-C™ (USB-C™)
2 x USB 3.1 Gen 1
1 x USB 3.1 Gen 2
1 x mini DisplayPort 1.2
1 x HDMI 2.0
1 x RJ-45 jack
1 x SD card reader
1 x 3.5mm headphone and microphone combo jack
1 x Kensington lock
Dimensions361 x 262 x 26.1 mm (14.21″ x 10.31″ x 1.03″)
Weight2.4 kg (5.3 lbs)

You can find all available GL504GM SCAR II laptops here:  Buy from Amazon.com (#CommissionsEarned)

You can find all available GL504GS SCAR II laptops here:  Buy from Amazon.com (#CommissionsEarned)

You can find all available GL504GM Hero II laptops here:  Buy from Amazon.com (#CommissionsEarned)

All ASUS ROG GL504 configurations:
